Siechem BS EN 50306-4 3E Multi Core, Screened, 300V AC, 450V DC, EBXL 90°C Rolling Stock Cable

Application

  • For mechanically exposed installation in Rail / Bus and other transport vehicles.
  • Cables are used in Driver desks, Control panels, wiring harness in inside/outside the moving vehicles.

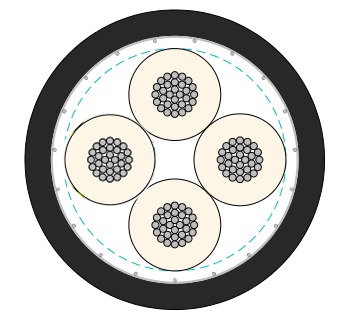

Product Construction

  • Conductor : Finely Stranded Annealed Electro Tinned Copper, (Unilay*)
  • Insulation : Cross Linked Ethylene Copolymer
  • Screen : Tinned Copper Braid
  • Separator Tape
  • Outersheath : EBXL – EM 104
  • Black colour or as per customer order.

Technical Data

  • Temperature Range : -40°C to +90°C.
  • Rated Voltage : 300V AC 450V DC
  • Specification : BS EN 50306-4 : 2020, Table 3 Class E
  • Hazard Level Classification as per EN 45545-2, HL3
  • Conductor : BS EN 50306-2 : 2020
    In addition to BS EN 50306 spec, cables also meet fire performance tests as per
    UNI CEI 11170-3
    DIN 5510-2
    NF F 16-101
    CEN /TS 45545

Features

  • Excellent resistance to high and low temperature
  • Outstanding Flame retardant
  • Halogen free
  • Thin walled with excellent flexibility
  • Resistance to oil, fuel, ozone and weathering.
  • Easy to strip
  • Low smoke density
  • Soldering iron resistant
  • Electron Beam Cross Linked.
  • Resistance to corona effect.

Part Number No. of cores x Cross Section (Nos) x (Sq.mm) Conductor Construction No.of Strands x Strand dia (Nos x mm) Max. Conductor Resistance at 20°C (Ω/km) Max. Core Diameter (mm) Min. Sheath Thickness (mm) Outer Diameter (mm) Cable Weight (Kg/Km) approx.
(Min) (Max)
R5560602 2 X 0.5 19 X 0.18 40.1 1.45 1.0 5.5 6.5 55
R5560603 3 X 0.5 19 X 0.18 40.1 1.45 1.0 5.7 6.7 60
R5560604 4 X 0.5 19 X 0.18 40.1 1.45 1.0 6.1 7.1 74
R5560606 6 X 0.5 19 X 0.18 40.1 1.45 1.0 6.9 7.9 95
R5560608 8 X 0.5 19 X 0.18 40.1 1.45 1.0 7.5 8.5 112
R5560802 2 X 0.75 37 X 0.16 26.7 1.65 1.0 5.9 6.9 65
R5560803 3 X 0.75 37 X 0.16 26.7 1.65 1.0 6.2 7.2 75
R5560804 4 X 0.75 37 X 0.16 26.7 1.65 1.0 6.5 7.5 90
R5560806 6 X 0.75 37 X 0.16 26.7 1.65 1.0 7.5 8.5 118
R5560808 8 X 0.75 37 X 0.16 26.7 1.65 1.0 8.2 9.2 140
R5561002 2 X 1 37 X 0.18 20.0 1.80 1.0 6.2 7.2 73
R5561003 3 X 1 37 X 0.18 20.0 1.80 1.0 6.5 7.5 85
R5561004 4 X 1 37 X 0.18 20.0 1.80 1.0 6.9 7.9 103
R5561006 6 X 1 37 X 0.18 20.0 1.80 1.0 8.0 9.0 137
R5561008 8 X 1 37 X 0.18 20.0 1.80 1.0 8.6 9.8 162
R5561302 2 X 1.5 37 X 0.23 13.7 2.30 1.0 7.1 8.1 76
R5561303 3 X 1.5 37 X 0.23 13.7 2.30 1.0 7.4 8.4 92
R5561304 4 X 1.5 37 X 0.23 13.7 2.30 1.0 8.0 9.0 138
R5561306 6 X 1.5 37 X 0.23 13.7 2.30 1.0 9.2 10.4 180
R5561308 8 X 1.5 37 X 0.23 13.7 2.30 1.0 10.2 11.4 224
R5561602 2 X 2.5 37 X 0.30 8.21 2.85 1.0 8.3 9.3 136
R5561603 3 X 2.5 37 X 0.30 8.21 2.85 1.0 8.6 10.2 163
R5561604 4 X 2.5 37 X 0.30 8.21 2.85 1.0 9.4 10.6 197

Other length as per Customer order.
